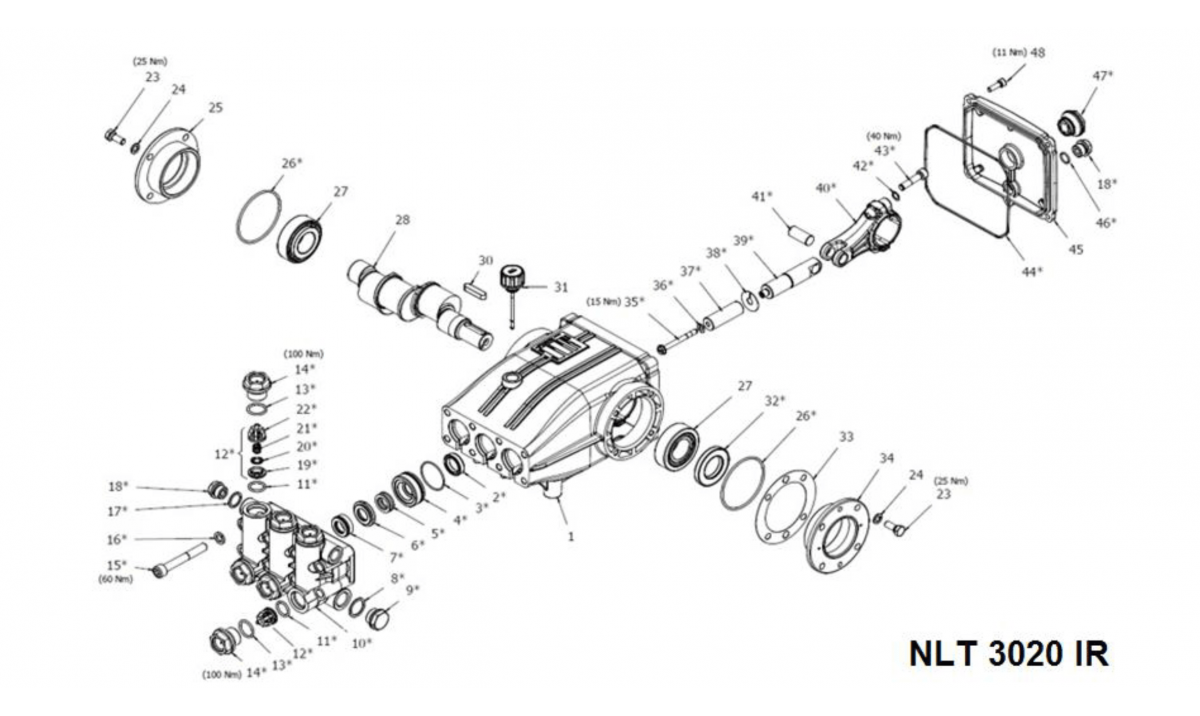

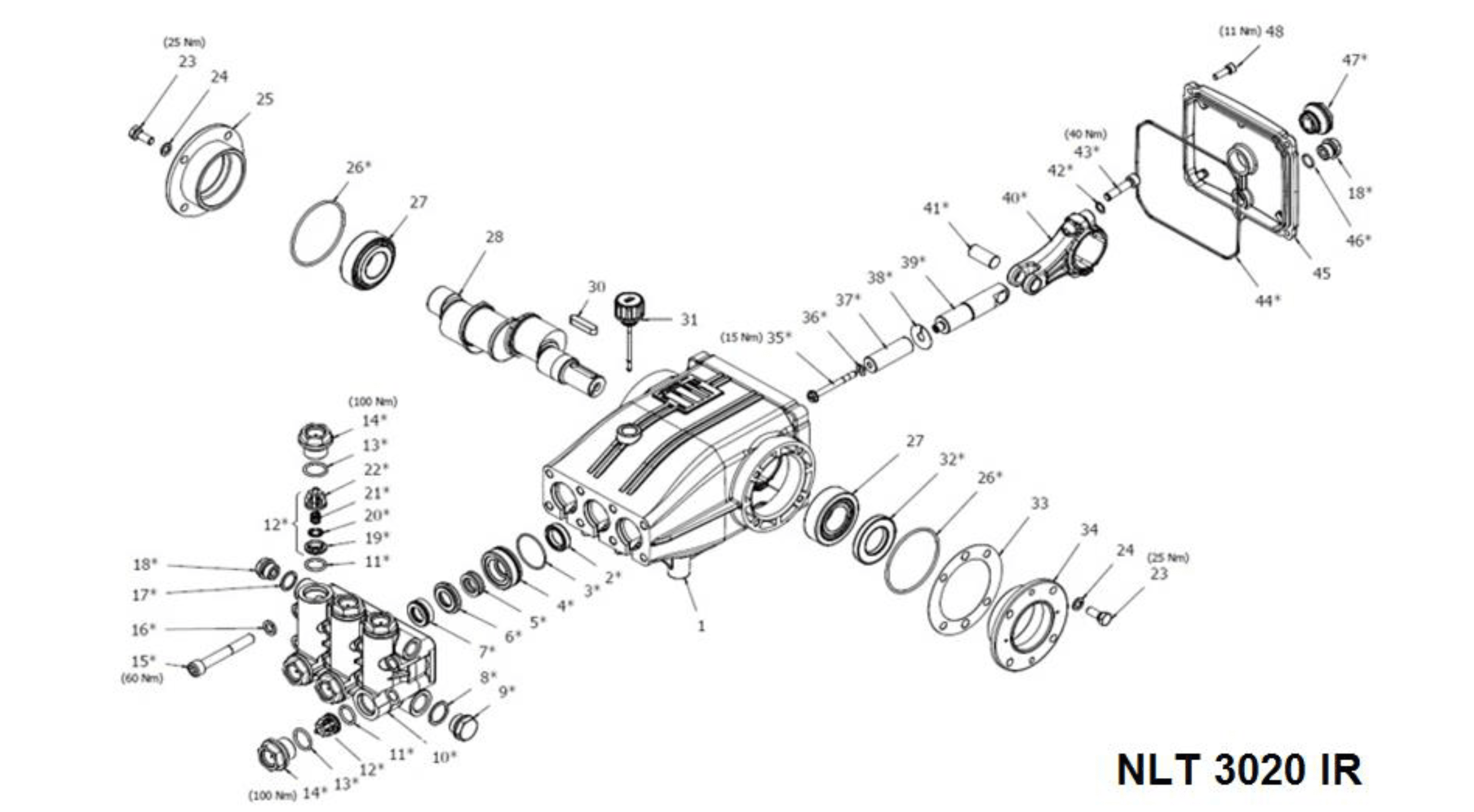

NLT 3020 IR Exploded View & Part List

A PHP Error was encountered

Severity: Notice

Message: Undefined variable: className

Filename: models/Front_common.php

Line Number: 197

Backtrace:

File: /home/acrg76fg9hz1/public_html/application/models/Front_common.php
Line: 197
Function: _error_handler

File: /home/acrg76fg9hz1/public_html/application/views/front/header.php
Line: 45
Function: getbrowserData

File: /home/acrg76fg9hz1/public_html/application/core/MY_Loader.php
Line: 14
Function: view

File: /home/acrg76fg9hz1/public_html/application/controllers/front/Parts.php
Line: 58
Function: template

File: /home/acrg76fg9hz1/public_html/index.php
Line: 274
Function: require_once

Photo	S.N	Item Code	Item Description	MOQ
-	1	C.IP.HW-1.099-759.0	1.099-759	3
-	2	C.IP.HW-1.905-669.0	1.905-669.0 Complete Valve (NLT) *260173	2
-	3	C.IP.HW-1.905-670.0	1.905-670.0 Complete Seals Packing 20 mm (NLT) *260176	3
-	4	C.IP.HW-1.099-763.0	1.099-763.0 Plunger 20 mm (NLT,XLT27) *260130	1
-	5	C.IP.HW-1.099-766.0	1.099-766.0 Plunger Oil Seal 30x20x7 (NLT,XLT,XXT,PX,MPX) *260003	3
-	6	C.IP.HW-1.905-565.0	1.905-565.0 Kit crankcase seals (NLT,XLT,XXT,PX)	3
-	7	C.IP.HW-1.904-182.0	1.904-182.0 Connecting Rod Plunger Rod Assy. (NLT,XLT,XXT,PX)	1
-	8	C.IP.HW-1.904-251.0	1.904-251.0 Valve Plug Assy. (NPM,NMT,NLT)	1


S.N

Item Code

Item Description

Quantity

MOQ

Select

C.IP.HW-1.099-759.0

1.099-759

C.IP.HW-1.905-669.0

1.905-669.0 Complete Valve (NLT) *260173

C.IP.HW-1.905-670.0

1.905-670.0 Complete Seals Packing 20 mm (NLT) *260176

C.IP.HW-1.099-763.0

1.099-763.0 Plunger 20 mm (NLT,XLT27) *260130

C.IP.HW-1.099-766.0

1.099-766.0 Plunger Oil Seal 30x20x7 (NLT,XLT,XXT,PX,MPX) *260003

C.IP.HW-1.905-565.0

1.905-565.0 Kit crankcase seals (NLT,XLT,XXT,PX)

C.IP.HW-1.904-182.0

1.904-182.0 Connecting Rod Plunger Rod Assy. (NLT,XLT,XXT,PX)

C.IP.HW-1.904-251.0

1.904-251.0 Valve Plug Assy. (NPM,NMT,NLT)
